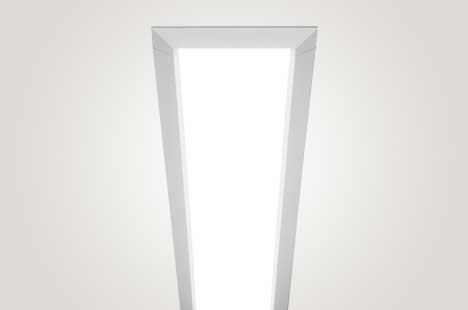

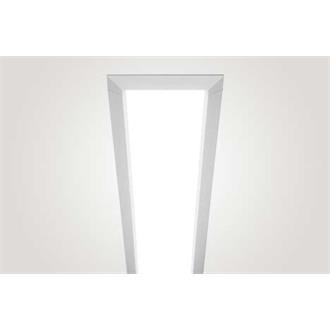

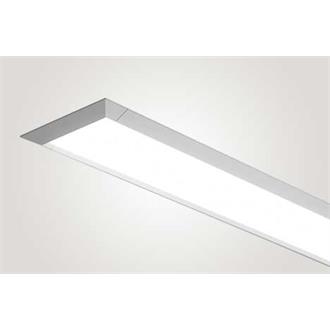

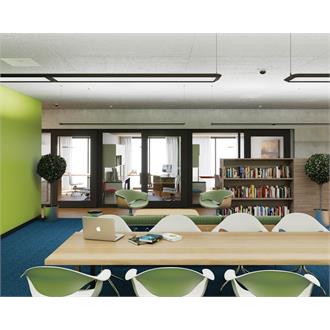

Vellum Linear Suspended

VMM9 | ID or Direct | Aluminum | 9"x1" | LED

By Peerless

    Buy America(n)
  • Overview
  • Specifications

With a sleek, low-profile form, Vellum valiantly delivers
on the promise of LED lighting by combining simple, yet sophisticated, modernity with practical efficiency to provide extraordinary illumination.
This award winning indirect/direct luminaire yields an impressive wide batwing distribution allowing for greater spacing and more uniform ceiling illuminance.

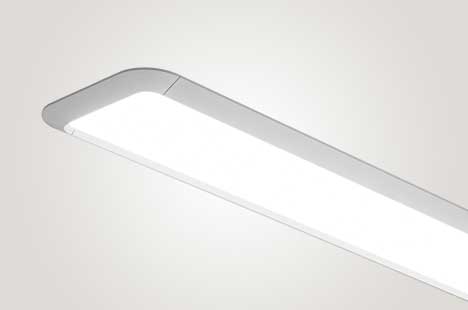

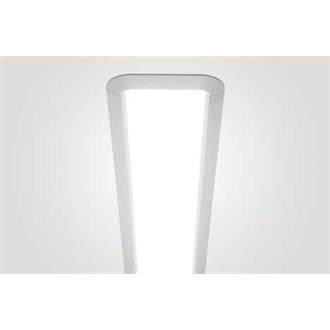

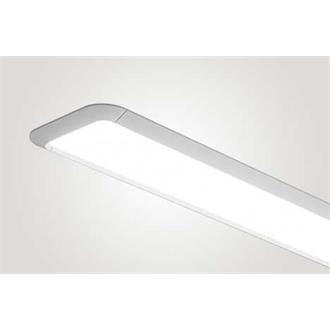

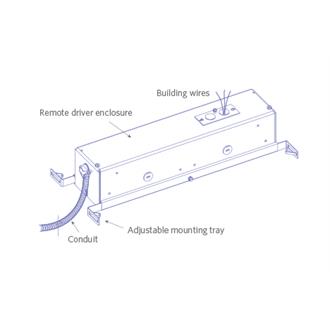

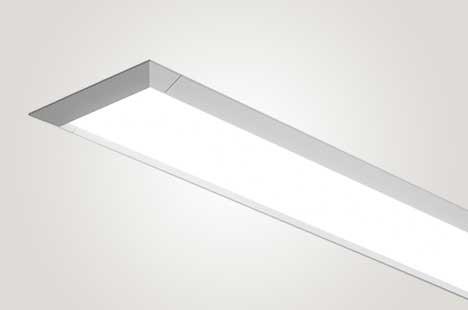

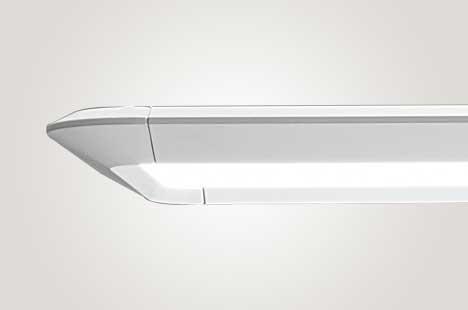

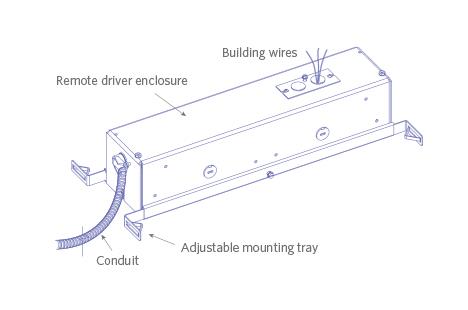

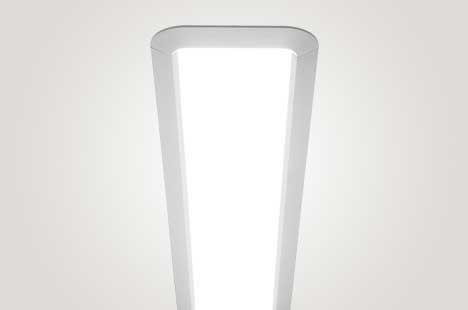

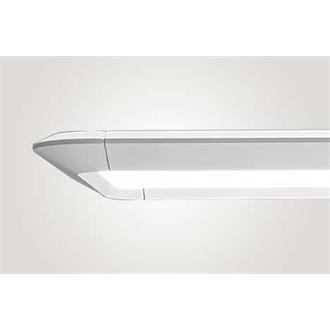

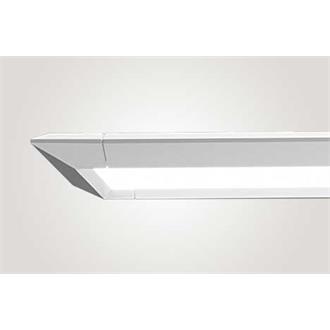

Available with rounded or squared end caps,4ft. and 8ft. sections, and measuring a mere 1” in height, Vellum luminaires feature Softshine® optics that provide comfortable, glare-free illumination and remote, in-ceiling eldoLED® drivers that provide smooth, flicker-free digital dimming to dark (0.1% low end).


  • 4' and 8' sections

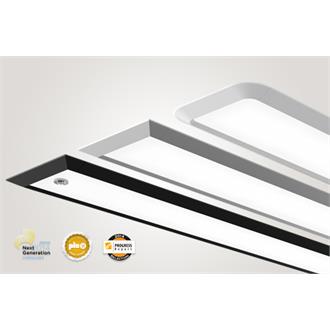

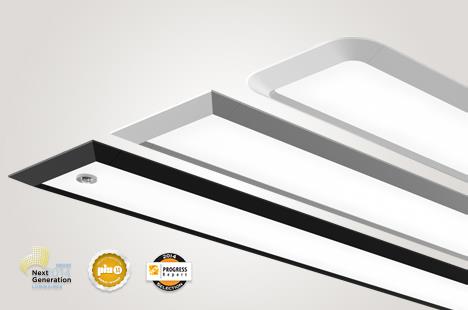

  • White, Black or Aluminum
  • Up to 106 LM/W
  • Emergency battery option
  • Powered by eldoLED 0-10v or DALI driver technology
  • 3500 or 5400 Lumens
  • 3000K, 3500K or 4000K CCT
  • Choice of 80 or 90+ CRI option
  • Seamless die-cast trims
  • nLight® enabled with integrated sensor options
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 1100 LM, 1400 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Linear
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Suspended
Voltage Rating 120, 277, 347
Series VMM9

Read More Read Less
